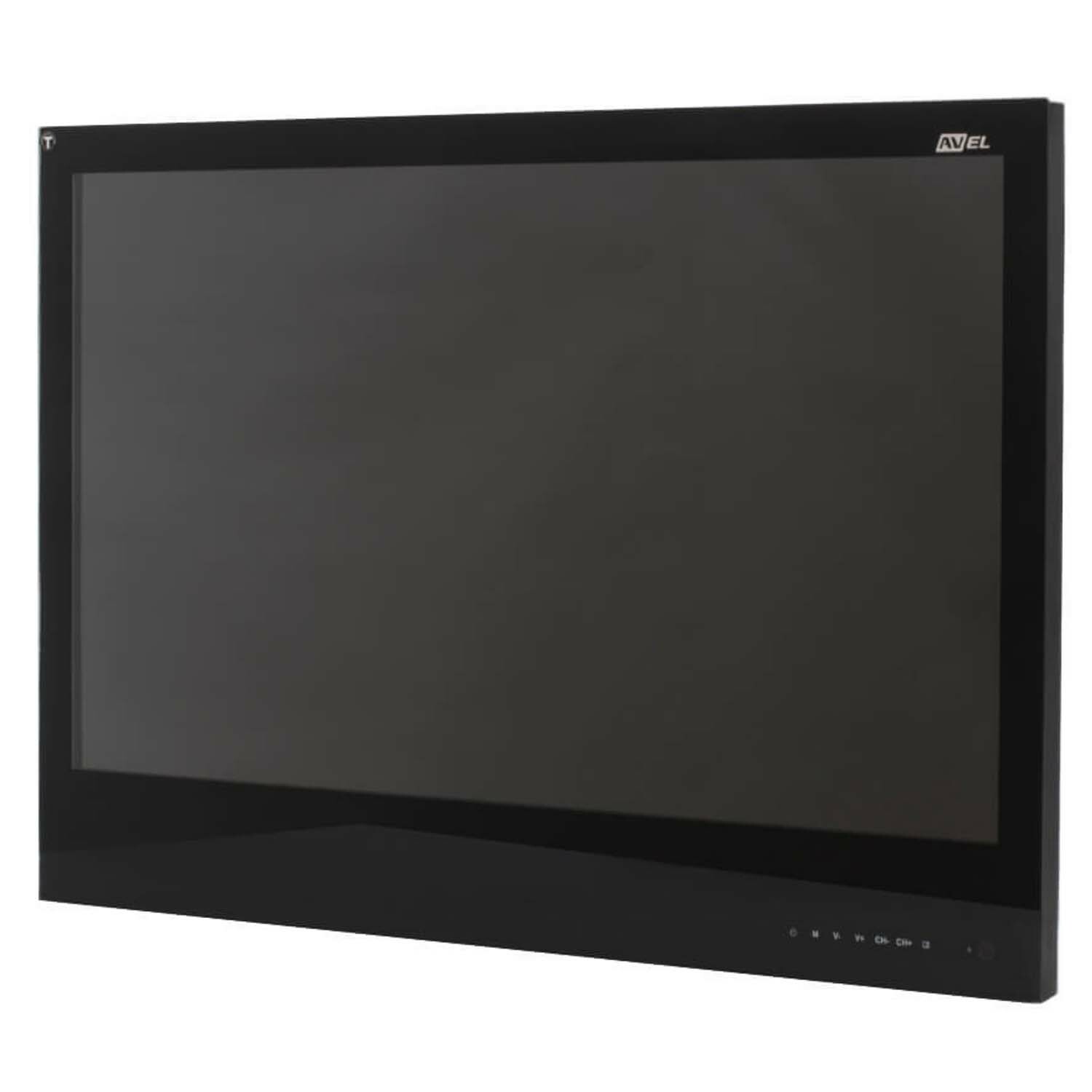

Touch Screen Kitchen Cabinet Smart TV // Black // 24"

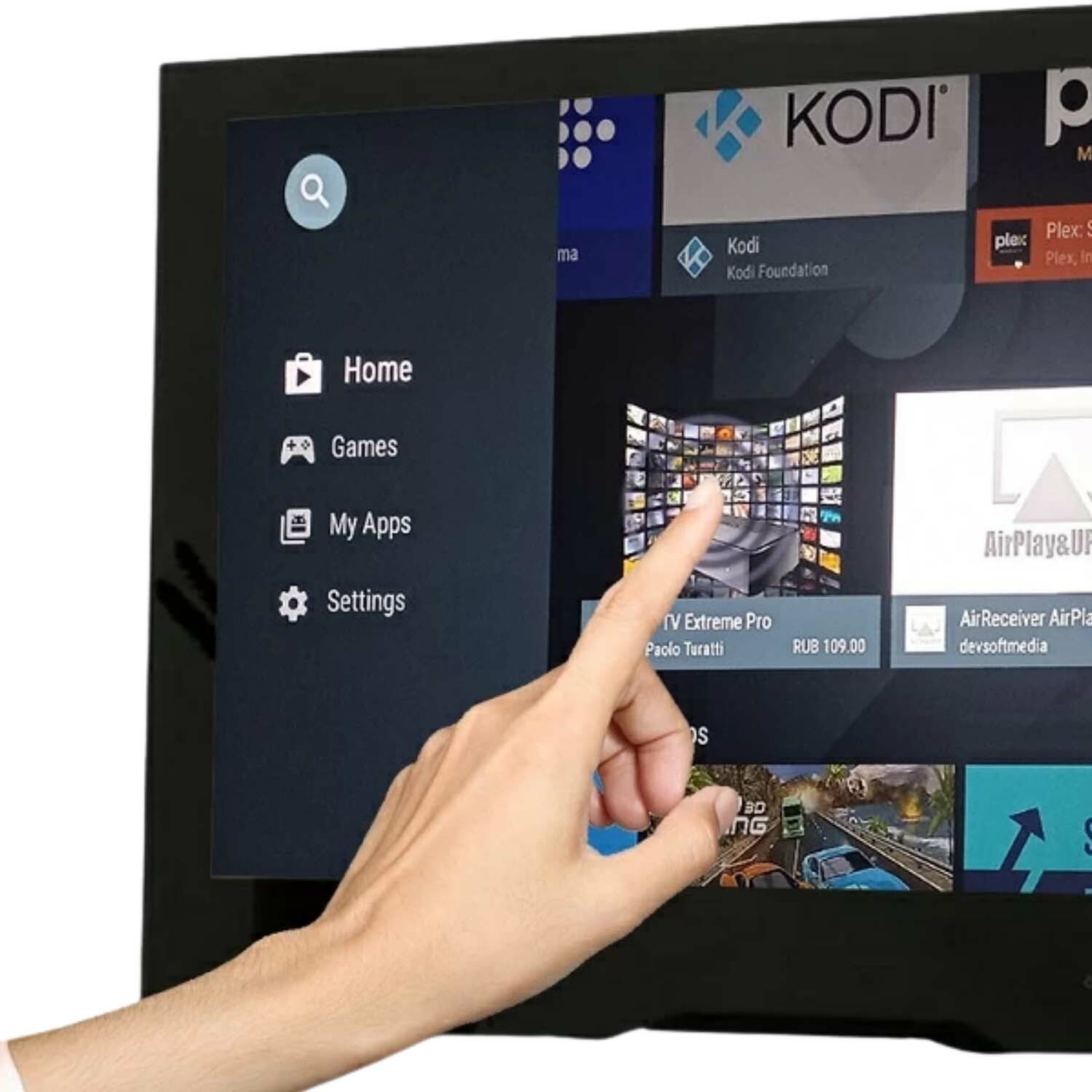

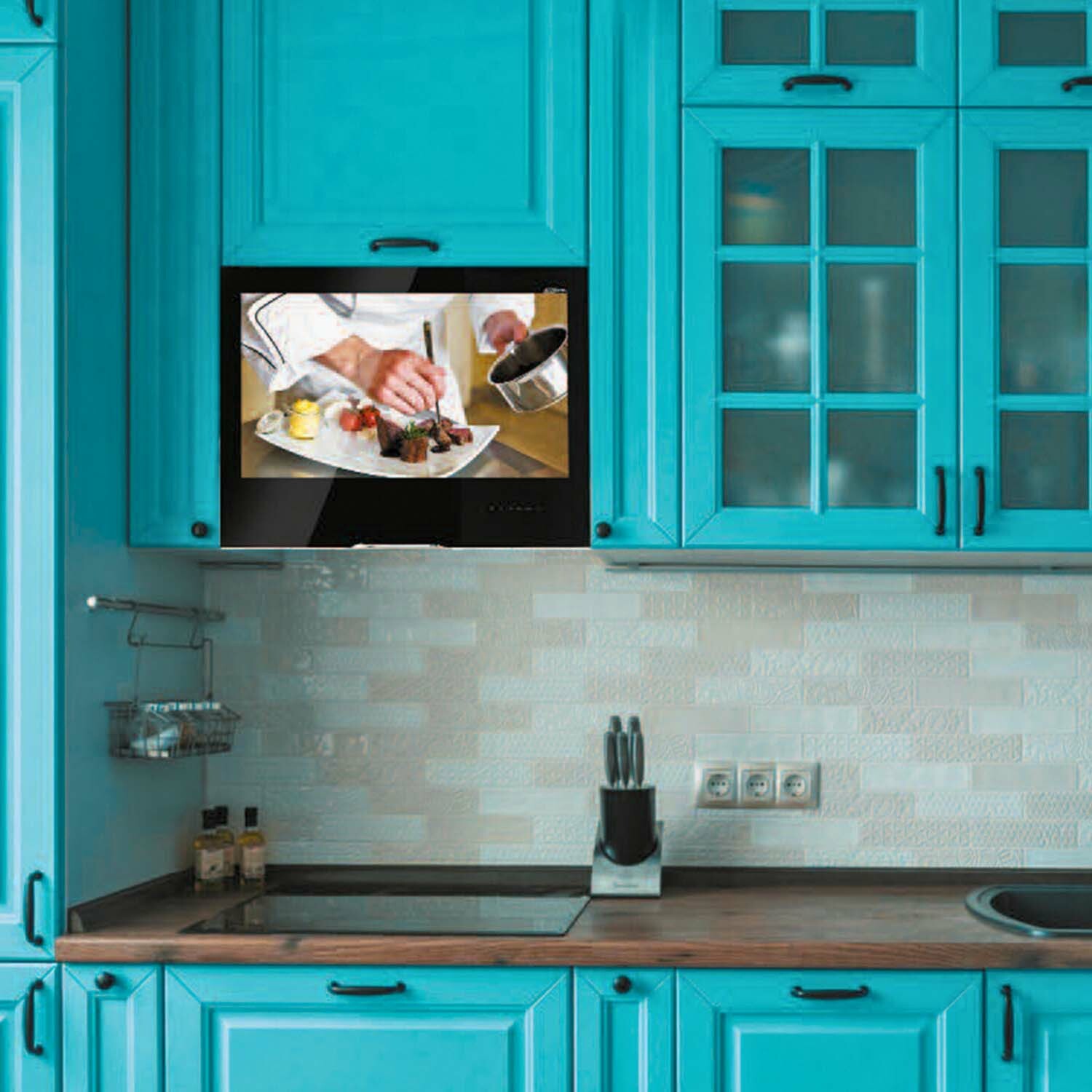

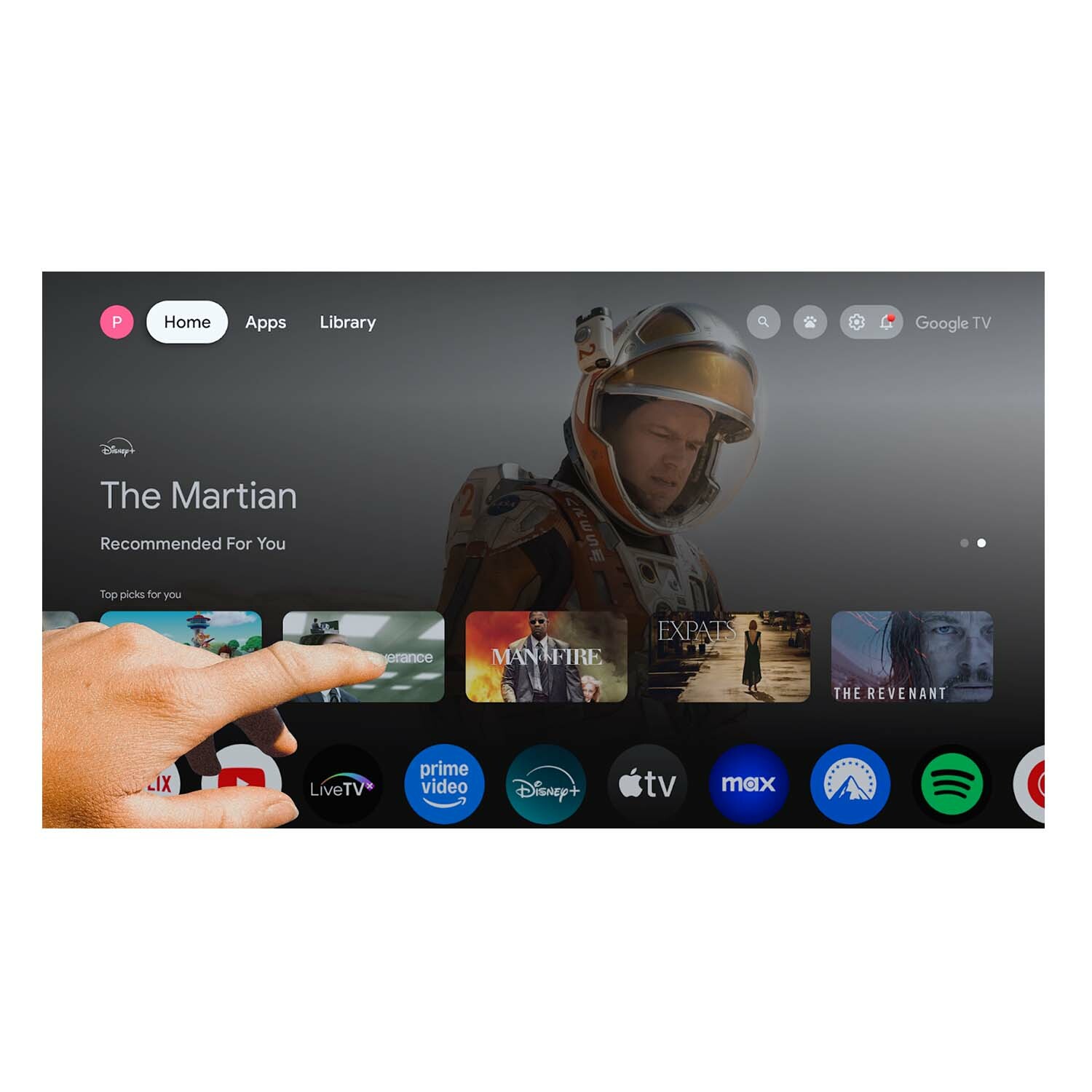

This built-in kitchen cabinet TV installs seamlessly into standard 24 inch cabinet systems, combining a clean black glass finish with modern smart functionality. Full capacitive touch screen control lets you operate the TV directly on the glass without reaching for a remote, while Google TV is built in for easy access to streaming apps and content. The high definition display pairs with an invisible audio system for a clean, integrated look, and the tempered safety glass screen is easy to wipe down and designed for everyday kitchen use. A lift system is required for full installation and operation. Both a Google TV remote and a waterproof remote are included.

SPECIFICATIONS
— Model: AVS245WSBF
— Mechanism Compatibility: Cabinet TV Lift System DTC TOP-STAYS SF, Model SF00AH02A
— Working Temperature: 0°C to +50°C
— Smart TV: Yes

DESIGN
— Capacitive Touch Screen
— Screen Finish: Black Frame
— Frame Material: Steel
— Screen Material: Tempered Safety Glass

DISPLAY
— Screen Size: 23.8 in (61 cm)
— Screen Type: LED LCD
— Resolution: Full HD 1920 x 1080
— Brightness: 250 cd/m²
— Aspect Ratio: 16:9
— Contrast Ratio: 1000:1 (typical)
— Color Depth: 16.7 million
— Viewing Angle: 178° horizontal / 178° vertical

OPERATING SYSTEM
— Android 11 (AOSP)
— Apps: Google Play Store, Chrome

PROCESSOR AND MEMORY
— CPU: RTD2843 ARM Cortex-A55 Quad Core up to 1.1 GHz
— GPU: Mali G31 dual core, up to 700 MHz
— RAM: 1.5 GB DDR3
— Storage: 8 GB

AUDIO

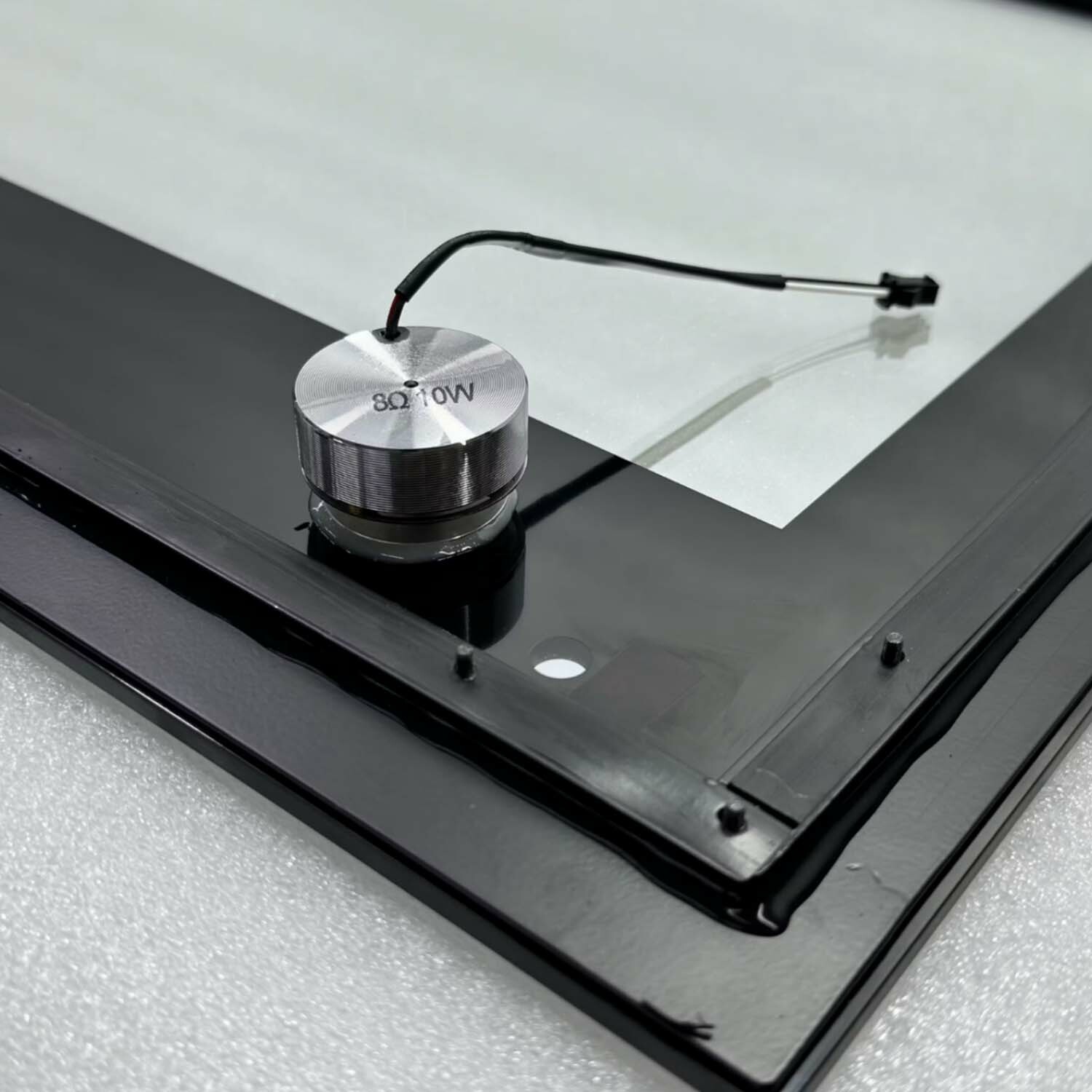

— Speakers: 2 x Internal Speakers (supports external Bluetooth speakers)
— Output Power: 2 x 5 W / 8 Ohms

TV SYSTEM
— Digital Tuner: DVB-T/T2/C/S/S2/ATSC (H.264, H.265, Dolby+)
— Analog Tuner:
Video: NTSC, PAL, PAL-M, PAL-N
Audio: BG, DK, I

USB MEDIA PLAYBACK
— USB Host: Video, image, and audio playback from USB flash drive or HDD
— Supported Formats:
Video: MPEG1/2/4, H.264, H.265, WMV, VC1, VP8, VP9, RM, AVS, AVS2.0, Sorenson, Motion JPEG, H.263, AV1
Audio: PCM, AMR, LPCM, RA, MPEG1/2/4, AAC, WMA, Dolby AC3, Dolby EAC3, Dolby AC4, Dolby, MPEG-H, DRA, FLAC, VORBIS
Image: JPG, BMP, PNG, GIF, MPO, JPS, PNS

CONNECTIVITY AND FEATURES
— Wi-Fi: 2.4G / 5G, IEEE 802.11 a/b/g/n/ac, Wi-Fi 6 support
— Ethernet: RJ45 10/100M with DHCP
— Bluetooth: V2.1 + EDR, V3.0, V4.x, V5.0
— Touch Controls: Power, Menu, Volume +/−, Channel +/−, Source

PORTS AND CONNECTORS
— TV In / Aerial:
1 x IEC Type (75 Ohm DVB-T/T2/C/Analog)
1 x F-Type (DVB-S/S2 or ATSC)
— 1 x Optical Digital Audio Out
— 2 x HDMI Input (HDMI 1 ARC, HDMI 1 and 2 CEC)
— 1 x USB 2.0
— 1 x Composite In (RCA)
— 1 x RJ45 Ethernet
— 1 x Earphone Out
— 1 x CI Slot (CI+, ATSC not available)
— 1 x IR Pass Through
— 1 x DC In (12 V)

HDMI FEATURES
— HDMI-CEC: Automatic power control with connected devices
— HDMI-ARC: Audio return channel to amplifier or ARC-compatible device

INSTALLATION
— VESA Mount: 100 x 100 mm

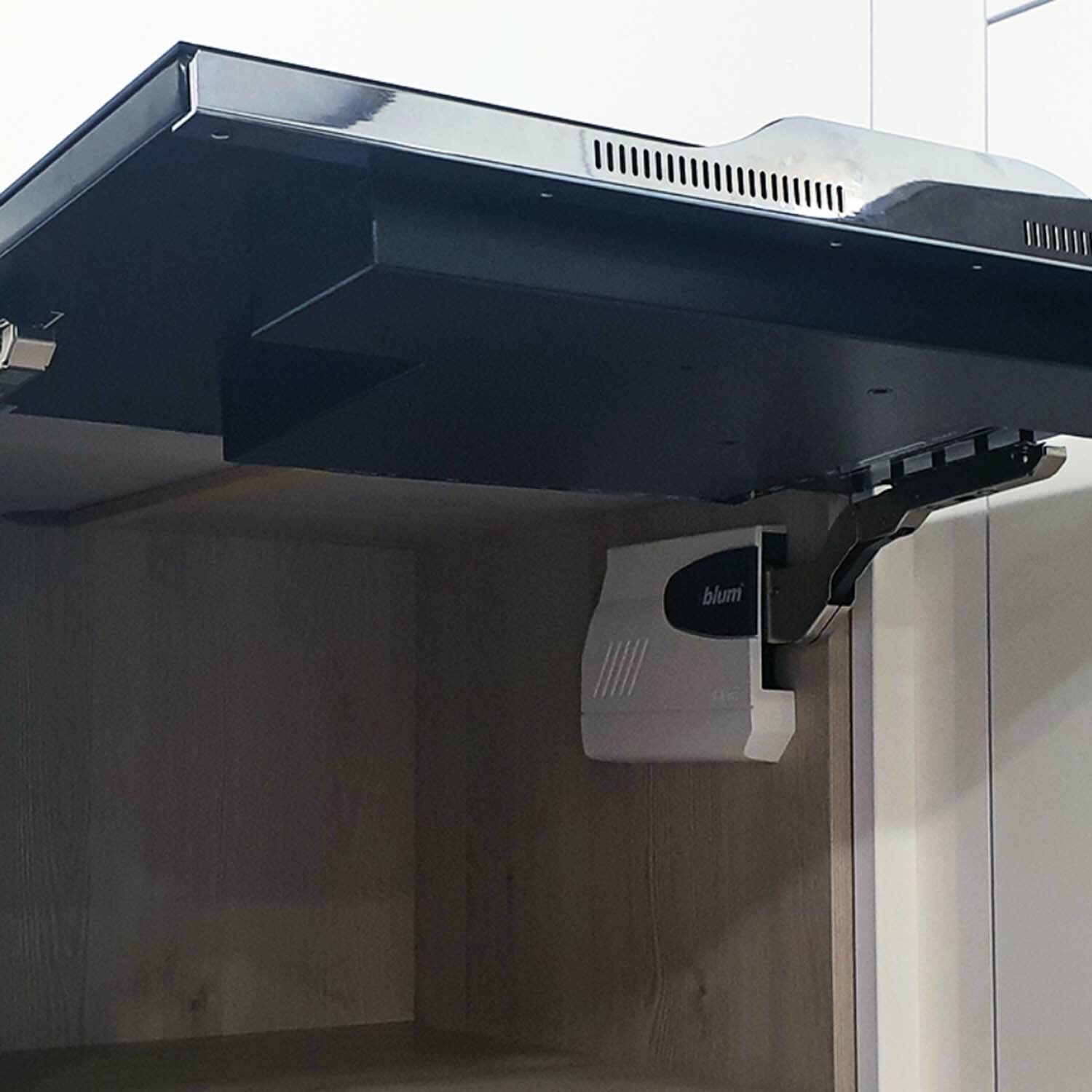

— Compatible Flip-Up, Slide-Up, and Motorized Lift Systems Supported
— Important Note: Lift systems are not included and must be purchased locally

CERTIFICATIONS
— CE
— ROHS
— EAC

POWER
— Mains Power: AC 100–240 V (DC 12 V / 4.25 A adapter)
— Power Consumption: 24 W
— Standby Power Consumption: 0.23 W

INCLUDED
— 1 x Waterproof Remote Control with Wall Holder (IP66 rated, not for immersion)
— 1 x Air Mouse Bluetooth Voice Remote (non waterproof)
— 1 x Power Adapter
— 1 x Power Cable
— 4 x Cable Fixation Ties
— 2 x Silicone Dampers
— 2 x Velcro Strips (15 cm)
— 1 Set of Screws for VESA and Blum, Kessebohmer, and Hafele Mounts
— Installation Guide and FAQ
